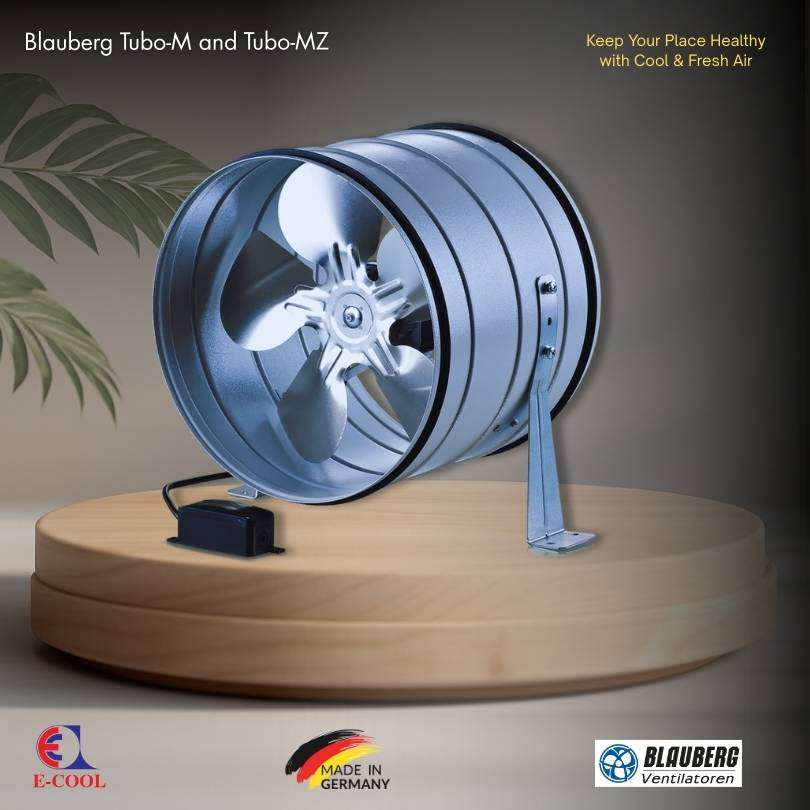

TUBO-M/MZ SERIES
The Blauberg Tubo-M and Tubo-MZ series are high-capacity inline axial duct fans designed for efficient supply and exhaust ventilation across commercial and industrial applications. Engineered for ventilation systems with low static pressure but high air volume demand, these fans offer powerful performance, compact steel bodies, and flexible installation.
Tubo-M units come with a polymer-coated steel casing, while Tubo-MZ versions feature a galvanized steel body — both built to last in demanding environments. Available in diameters from Ø150 mm to Ø315 mm, they’re compatible with standard round ducting and offer quick wall or duct mounting in any position.
The Blauberg Tubo-M / MZ Series offers a compact yet high-performance solution for ventilation systems requiring efficient air movement and flexible installation. Designed for both residential and commercial applications, these inline duct fans feature a robust steel casing with a polymer or galvanized finish for enhanced durability and corrosion resistance.
Equipped with lightweight aluminium impellers, these fans ensure optimal airflow with minimal energy consumption. The external rotor asynchronous motor is protected with a thermal safety system and auto-restart, offering long-term reliability. Rated IPX4 (motor IP44), the fans are suitable for humid environments and can handle air temperatures from -30°C to +40°C.
Key Features:
✅ High Airflow: Up to 1700 m³/h for Tubo-M 315
✅ Compact & Durable: Steel casing with polymer or galvanized finish
✅ Aluminium Impeller: Lightweight and corrosion-resistant
✅ Flexible Mounting: Can be mounted on duct, wall, or ceiling
✅ Thermal Protection: Built-in safety with auto-restart
✅ Wide Compatibility: Duct sizes from Ø100 to Ø315 mm
Technical Specifications Overview:
| Model | Voltage | Power (W) | Max Air Flow (m³/h) | RPM | Noise @3m [dBA] | Weight |
|---|---|---|---|---|---|---|
| Tubo-M / MZ 150 | 220–240V | 26 (50Hz) | 180–205 | 1432–1590 | 33 dBA | ~2.5 kg |
| Tubo-M / MZ 200 | 220–240V | 33–36 | 390–450 | 1410–1654 | 33 dBA | ~3.2 kg |
| Tubo-M / MZ 250 | 220–240V | 68–76 | 1050–1070 | 1300–1450 | 37 dBA | ~4.8 kg |
| Tubo-M / MZ 315 | 220–240V | 110–104 | 1650–1700 | 1300–1365 | 42–43 dBA | ~5.5 kg |
✅ Frequency: 50/60 Hz
✅ IP Rating: IPX4 (Motor: IP44)
✅ Max Air Temperature: -30°C to +40°C
✅ Motor Type: External rotor, asynchronous
✅ Mounting: In-duct or wall/ceiling with included brackets
✅ Duct Compatibility: Ø150 mm to Ø315 mm (Reducers available separately)
