Blauberg Iso-VK (Industrial Kitchen Extract Fan)
The Blauberg Iso-VK is a powerful, heat-resistant extract fan built for high-performance ventilation in kitchens, bakeries, and industrial areas. Rated for up to 120 °C, this insulated unit supports both inline and 90° ducting configurations.
Engineered for tough ventilation demands, the Blauberg Iso-VK industrial extract fan is built to tackle hot, greasy, and contaminated air up to 120 °C, making it ideal for professional kitchens, bakeries, and industrial workshops.

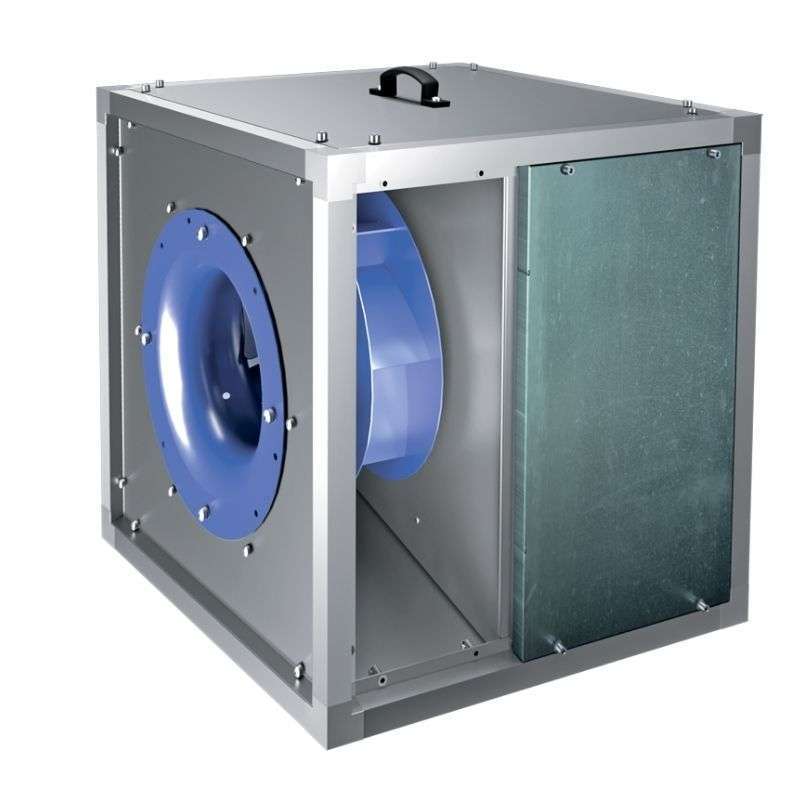

Its modular transformable casing supports both inline and angled airflow designs, allowing unmatched flexibility during installation. The casing is constructed from thermal and sound-insulated double-skinned aluzinc sandwich panels, which help reduce both operating noise and energy loss.

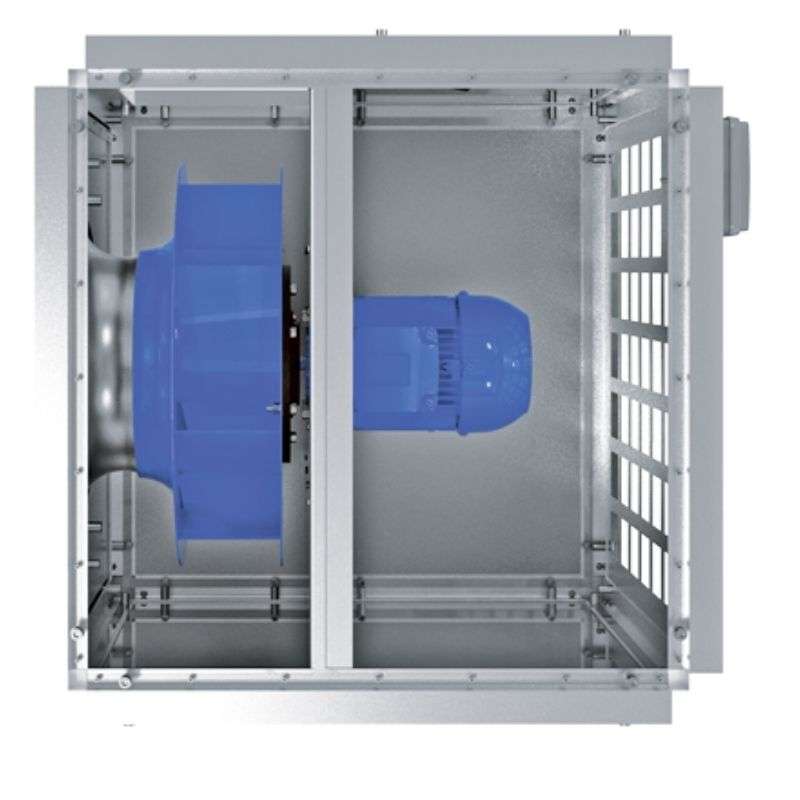

The external IP55-rated motor remains outside the airflow stream, ensuring grease-free operation, long service life, and minimal maintenance. Designed for both round and rectangular duct systems, the Iso-VK fan easily integrates into new or existing HVAC systems.
Key Features:
✅ Handles Hot Air up to 120 °C (with grease filters)
✅ High Airflow up to 25,500 m³/h
✅ Thermal & Sound-Insulated Aluzinc Panels

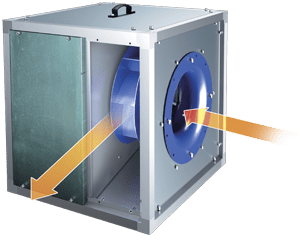

✅ Flexible Inline or 90° Airflow Direction
✅ Motor Outside the Airstream – Ensures Clean Operation
✅ IP55, Class F Motor – Maintenance-Free
✅ Suitable for Ø315–800 mm Round or 500×500–1175×1175 mm Rectangular Ducts
✅ External Mounting Ready – Corrosion Resistant
Applications:
• Commercial kitchens & canteens
• Industrial bakeries
• Welding zones and workshops
• Exhaust systems handling hot, grease-laden air
Mounting & Control:
• Connects easily with flexible vibration-absorbing connectors

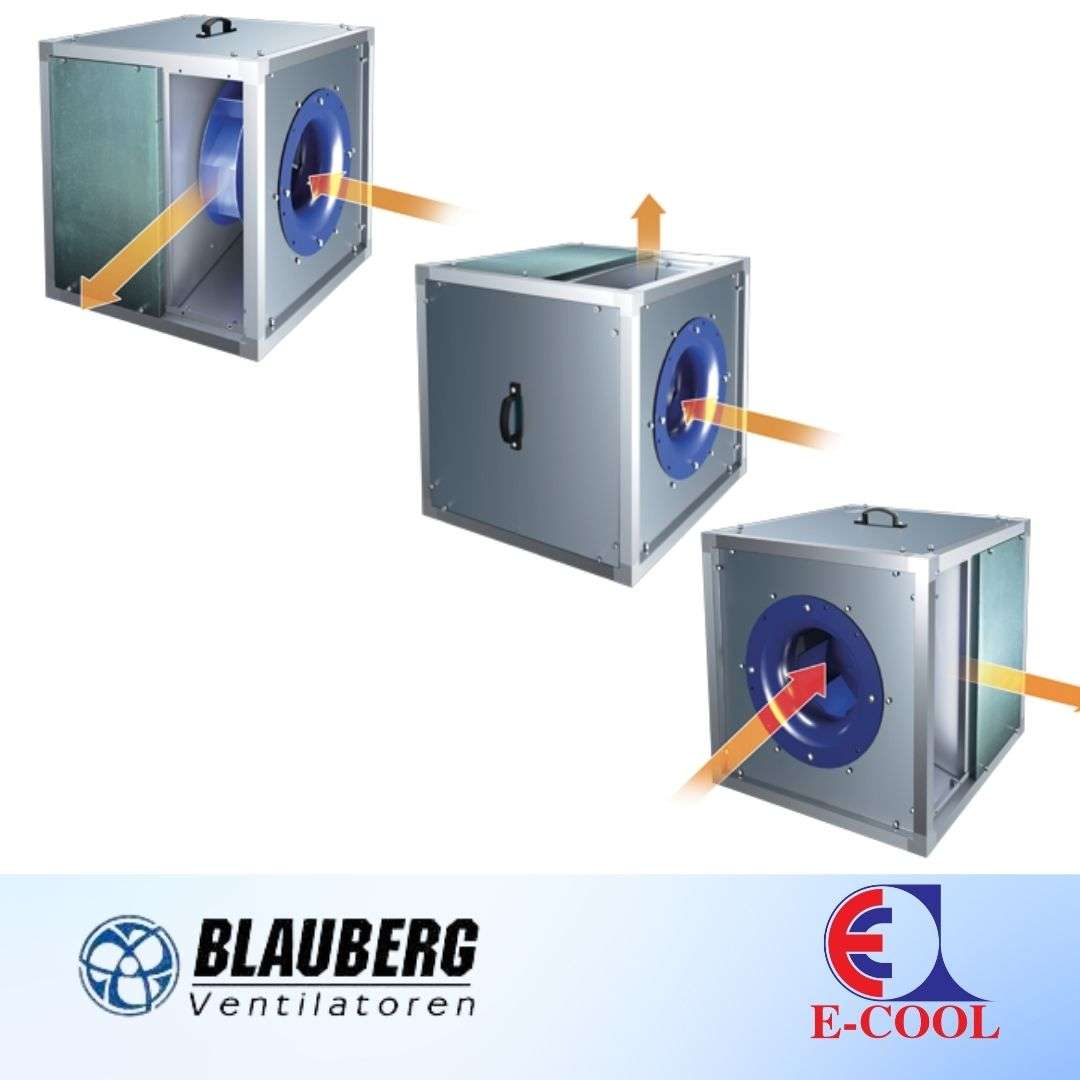

• Can be installed inline or at a 90° angle
• Adjustable panels allow airflow redirection
• Powered via an external terminal box
• Step-speed control available for 3-phase motors using transformer controllers
