SHUTTER TYPE EXHAUST FAN
Our Shutter Type Exhaust Fans are high-performance, energy-saving ventilation solutions designed for industrial and commercial use. Featuring automatic shutters on one side and a safety grill on the other, they provide powerful airflow with minimal noise. Built with durable materials like galvanized steel, stainless steel, or aluminum-magnesium alloy, they’re easy to install, safe to use, and require low maintenance.
Our energy-saving ventilation exhaust fans are easy to install and maintain. These exhaust fans have an automatic shutter on one side and a security grill on the other side to prevent any kind of accident.
These Exhaust Fan consumes low power but has a high capacity and creates very low noise. Made with different types of materials like stainless steel, galvanized steel, aluminum-magnesium allow.
| Model | Height (mm) |
Width (mm) |
Thickness (mm) |
Diameter Blades (mm) |
Air Flow (m³/h) |
Blades RPM | Motor RPM | Total Pressure |
Noise Decibels | Import Power | Rated Voltage |
| DLFH-800(32″) | 800 | 800 | 400 | 710 | 22000 | 660 | 1400 | 60 | ≤60 | 370 | 380 |
| DLFH-900(36″) | 900 | 900 | 400 | 750 | 28000 | 630 | 1400 | 65 | ≤65 | 550 | 380 |
| DLFH-1000(40″) | 1000 | 1000 | 400 | 900 | 30000 | 610 | 1400 | 70 | ≤70 | 750 | 380 |
| DLFH-1100(44″) | 1100 | 1100 | 400 | 1000 | 32500 | 600 | 1400 | 70 | ≤70 | 750 | 380 |
| DLFH-1220(48″) | 1220 | 1200 | 400 | 1100 | 38000 | 460 | 1400 | 73 | ≤70 | 1100 | 380 |
| DLFH-1380(56″) | 1380 | 1380 | 400 | 1250 | 44000 | 439 | 1400 | 56 | ≤75 | 1100 | 380 |
| DLFH-1530(61″) | 1530 | 1530 | 400 | 1400 | 55800 | 325 | 1400 | 60 | ≤70 | 1500 | 380 |

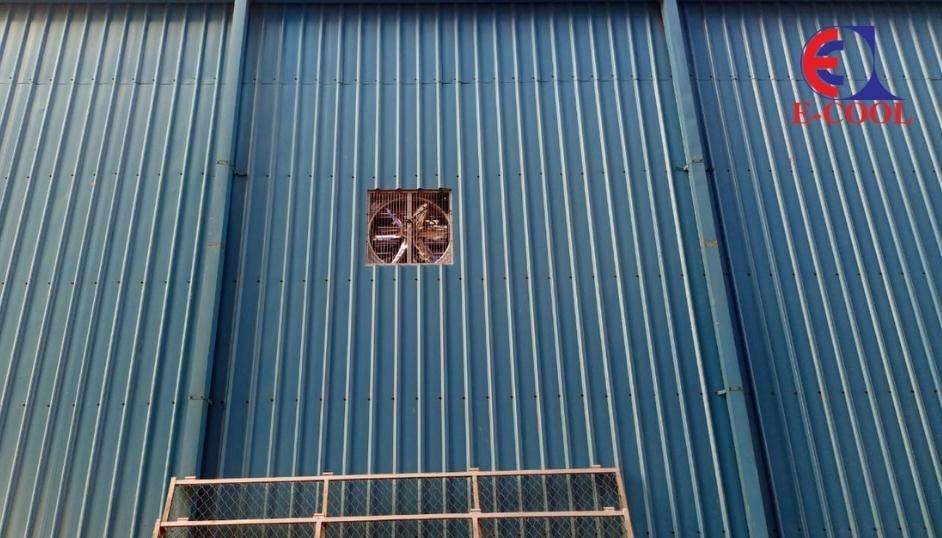

Projects Where we Installed our Shutter Type Exhaust Fan
