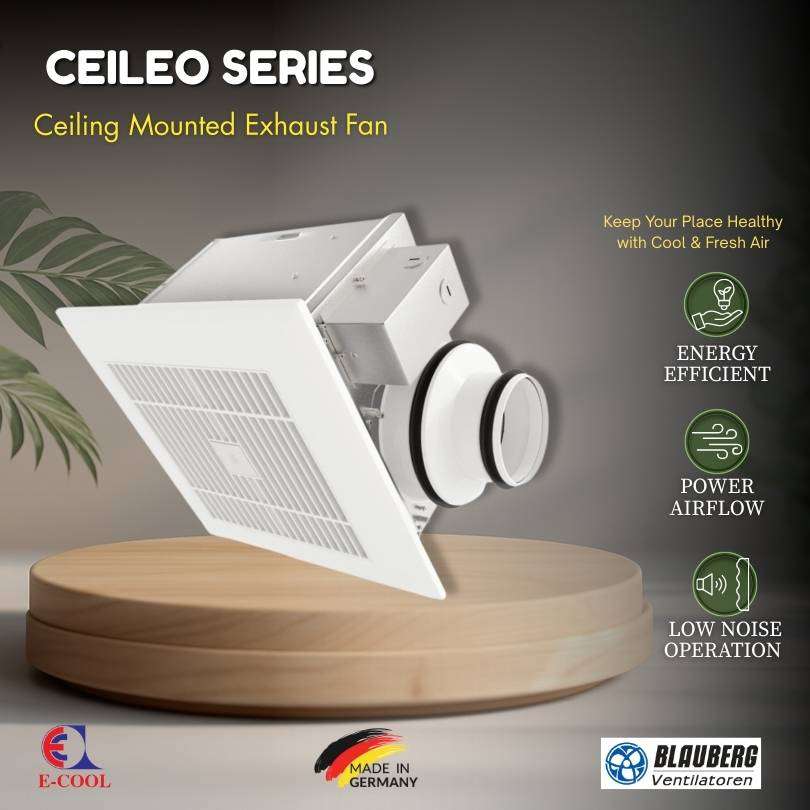

CEILEO SERIES

The Ceileo Series is a modern and efficient line of ceiling-mounted centrifugal ventilation fans, ideal for intermittent or continuous air extraction in bathrooms, kitchens, showers, and other domestic spaces. These fans are engineered for high-resistance duct systems and offer quiet operation with forward-curved impellers for maximum air pressure and minimum noise.

The modular design allows easy upgrades with optional humidity or motion sensors (except the base model), and several models feature an integrated low-energy LED light (Ceileo Light).

Key Features:

✅ 2-Speed Centrifugal Fan – High pressure with low noise
✅ Modular Design – Add humidity or motion sensors later (except base model)
✅ Integrated Timer – Adjustable 1–90 minutes (Ceileo T)
✅ Ceileo Light Option – Built-in LED light for added functionality
✅ Gravity Backdraft Damper – Prevents reverse airflow
✅ IPX2 Protection – Safe for moist environments
✅ Durable Galvanized Steel Housing
✅ Quiet Operation – Forward-curved blades for minimal noise
✅ Ceiling Mount with Easy Clip-On Grille
✅ Maintenance-Free Motor – 40,000+ hours lifespan

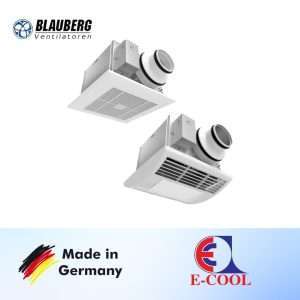

Available Models:

• Ceileo 200 T

• Ceileo 250 T

• Ceileo 300 T

• Ceileo Light 200 T

• Ceileo Light 250 T

• Ceileo Light 300 T

Control Options:

🟢 Manual Control (via CDP-2/10 speed switch – optional)
🟢 Automatic Control via Timer, Humidity Sensor, or Motion Sensor (retrofit available)
• Fan runs continuously on Mode 1 (low speed)
• Switches to Mode 2 (high speed) via light switch, humidity, or motion
• Reverts to Mode 1 after delay (1–90 min)

Mounting & Installation:

• Designed for ceiling spaces

• Mounts to joists with spreader claws and screws

• Connects to flexible ducts using clamps

• Compatible with Ø100 mm or Ø150 mm ducting

Specifications Overview:
